Reports

Saved queries and charts over tasks, runs, rules, integrations and your data — in the app, the API, MCP and OData.

A report picks a source, columns, filters, joins, grouping and aggregates, and a visualization: table, bar, horizontal-bar, stacked-bar, line, area, pie, radar, scatter or funnel.

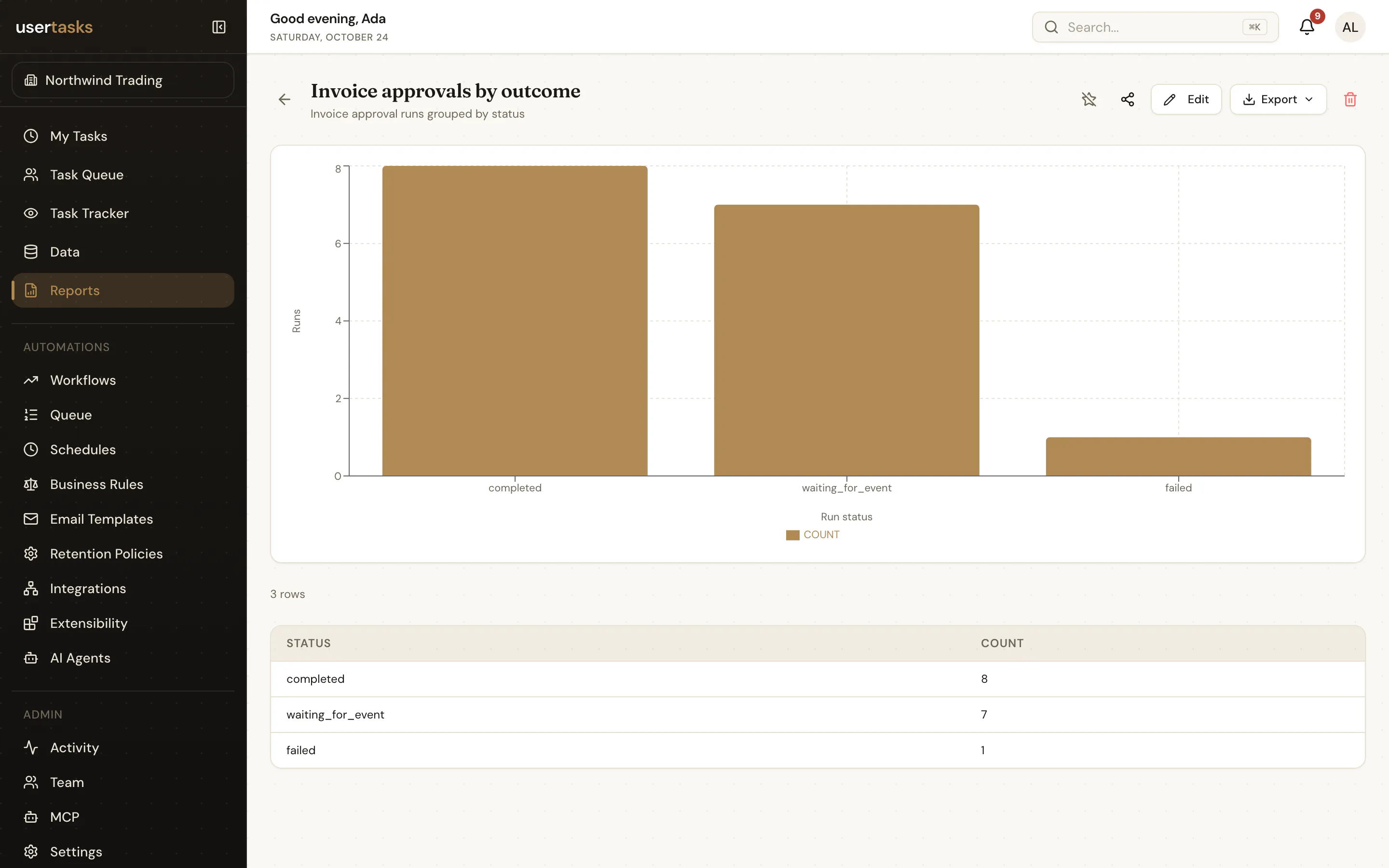

A report with a chart — A saved report over workflow runs.

A grouped report

{
  "name": "Runs by status",
  "data_source": "workflow_runs",
  "columns": ["status", "COUNT_id"],
  "group_by": ["status"],
  "aggregations": [{ "field": "id", "fn": "COUNT" }],
  "visualization": "bar"
}

bash

usertasks reports create -f runs-by-status.json
usertasks reports preview -f runs-by-status.json   # run a definition without saving it
usertasks reports export <id> > report.json      # portable definition

Aggregations run in the database, and exports are produced on the server, so large reports stay fast.

Sources

Built-in sources (generated from the report registry), plus one source per data table and per reference with outputs:

Source	Key	Category	Columns
Tasks	`tasks`	Tasks	19
Effort Records	`effort_records`	Tasks	7
Task Events	`lifecycle_events`	Tasks	5
Task Assignees	`task_assignees`	Tasks	7
Task Escalations	`task_escalations`	Tasks	7
Task Responses	`task_responses`	Tasks	6
Workflow Runs	`workflow_runs`	Workflows	11
Workflow Logs	`workflow_logs`	Workflows	12
Business Rule Executions	`business_rule_executions`	Business Rules	19
Workflow Queue	`workflow_queue`	Workflows	12
Workflows	`workflows`	Workflows	8
Integrations	`integrations`	Integrations	8
Integration References	`integration_references`	Integrations	6
Connectors	`tenant_connectors`	Integrations	8
Users	`users`	Organisation	8
Teams	`teams`	Organisation	4
Notifications	`notifications`	Audit	8
Failed Deliveries	`dead_letter_events`	Audit	8
API Keys	`api_keys`	Audit	7
Invitations	`invitations`	Audit	6
Object Audit Log	`object_audit_log`	Observability	7
Integration Call Logs	`integration_call_logs`	Observability	12
Agent Runs	`agent_runs`	Observability	13
Retention Policies	`retention_policies`	Retention	10
Retention Reviews	`retention_policy_reviews`	Retention	15
Retention Executions	`retention_policy_executions`	Retention	14
Retention Coverage	`retention_policy_assignments`	Retention	14

Access

Reports have owners and sharing (reports.share). Read them in the app, with GET /api/v1/reports/{id}, through MCP (reports_* tools — AI clients can build and run reports), or as OData collections (SavedReports, SavedReportResults).
